Description
Fantastic Performance in AutoCAD 2019
Performance in AutoCad 2019 relies heavily on processor clock speed which is why we have use the latest Intel Core i5-9600K processor in this computer. This has a 6 core processor able to boost CPU clock speed to 4.6GHz, one of the highest clock speeds in the Intel processor range.
Fast and reliable storage is also very important which is why we have incorporated a 512GB NVMe SSD drive as the primary storage drive along with a 1TB HDD. The SSD is particularly fast and helps the PC feel very quick in day to day tasks.
The 16GB of memory included with this PC is ideal for AutoCAD use and will cover the requirements of the vast majority of customers use. The motherboard has two free memory slots so it is possible to upgrade the memory to 32GB later if required.
The graphics card is an AMD Radeon Pro WX3100 4GB professional workstation graphics card. It is a model on the AutoCAD official support list and works well in both 2D and 3D models.
The PC has been designed to operate at high performance for extended periods of time and has powerful processor cooling to ensure you experience no drop off in performance. The cooling fans are of a low noise design too.
Specifications:
Processor
- Intel Core i5-9600K 3.7Ghz Six Core CPU
- Max Turbo Frequency: 4.6Ghz
- Cache: 9MB
- Be Quiet! Pure Rock CPU Cooler Installed
Memory
- 16GB DDR4 2666Mhz RAM
- Dual Channel – 2 x 8GB
- Supports up to 64GB
- 4 x DIMM sockets (2 Used)
Hard Drive
- 512GB ADATA SX8200 PRO M.2 PCIe NVMe SSD
- 1TB Seagate BarraCuda 3.5″ Hard drive
- 2 x M.2 Slot, 1 free
- 6 SATA Ports, 4 free (2 Used for DVD-RW and 1TB HDD)
Optical Drive
- Asus DVD Re-Writer, SATA, 24x, M-Disk Support
- 2 Optical Bays (1 free)
Software
- Windows 10 Professional
- Clean install, no additional software
Chipset
- Intel B360 Chipset
Display Outputs
- 1 x DisplayPort 1.4
- 2 x mini-DisplayPort
- 1 x mDP-DVI SL (passive) adapter included
- Supports up to 5 monitors at once via DisplayPort 1.2 MST
- Supports HDCP
Graphics
- AMD Radeon Pro WX3100 4GB Professional GPU with 10 bit colour
Audio
- High Definition Audio, 5.1 or 7.1 channel
- Audio provided by Realtek ALC892 Audio Chip on the motherboard
Input Devices
- No Keyboard or Mouse Included
Wired Networking
- Intel 10/100/1000 LAN
Wireless Networking
- None
Power Supply
- 500 watts
Dimensions
- Height: 444mm
- Width: 205mm
- Depth: 464mm
Interfaces
- 1 x PS/2 Keyboard/Mouse Port
- 3 x USB 2.0 Port (1 front, 2 rear)
- 4 x USB 3.1 Gen 1 Port (1 front, 3 rear)
- 1 x USB 3.1 Gen 2 Type-A Port (1 rear)
- 1 x RJ-45 Ethernet Port
- 6 x Audio Jacks at the rear
- 2 x Audio Jacks at the front
- 1 x DisplayPort 1.4
- 2 x mini-DisplayPort
Note the display outputs from the motherboard are disabled when a graphics card is installed.
Expansion
- 2 x PCI-e x 16 Slot , 1 Free, (1 x Used fro video card)
- 4 x PCI-e x 1 Slots, 3 Free, (1 obscured by video card)
Case

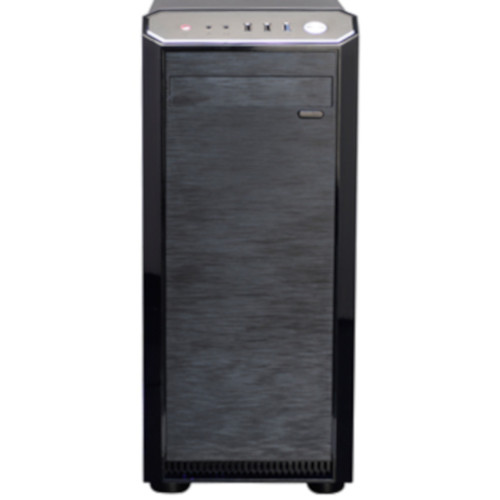

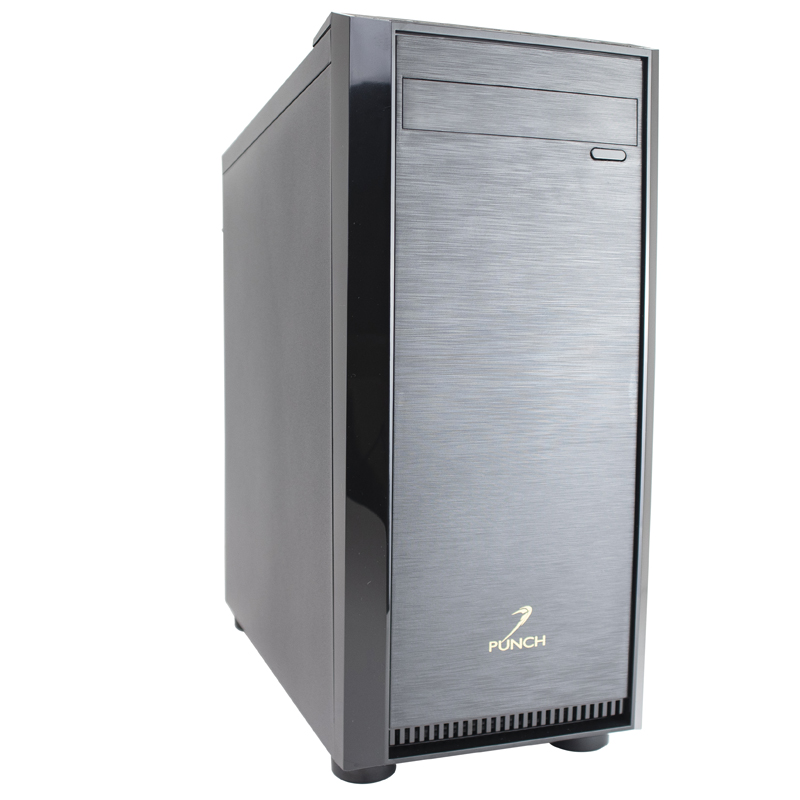

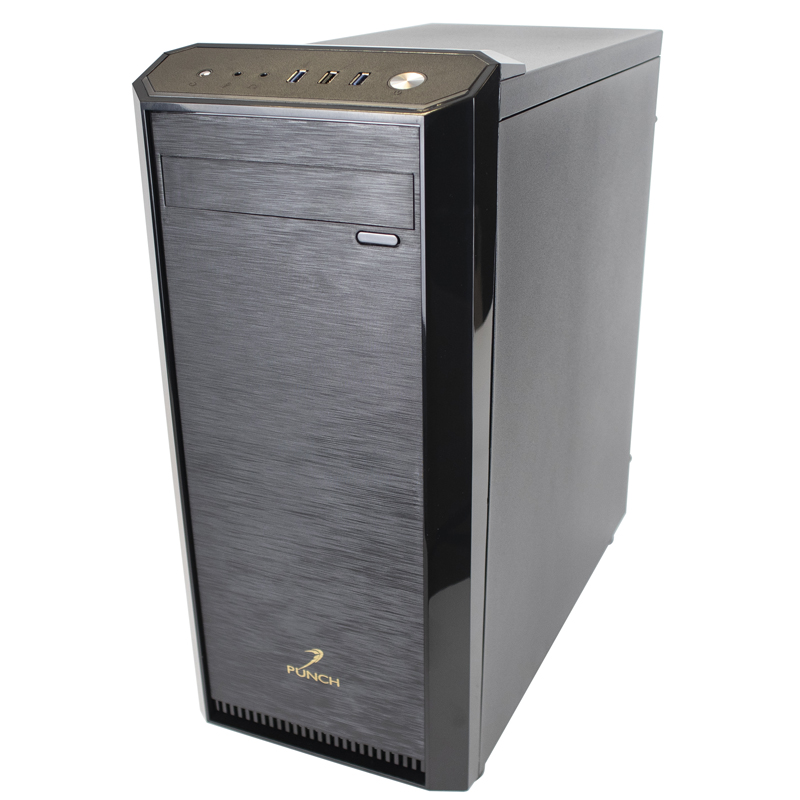

- Contour L03 Black Silent ATX Case
- Pre-installed low noise Black 120 mm fan
- Space for 2 additional fans at the front
- Space to accept 120mm or 240mm liquid coolers
Warranty
- 3 Year Return to Base parts and labour
- 1st 30 days collect and return at our expense
